Media systems



Knowing the general structure of the intended media systems simplifies both the negotiations with the industrial zone and the subsequent technical tenders and concept design. Here, it is not about the constructional implementation, but about information from the production process, which provides the prerequisite for the targeted provision of the media.

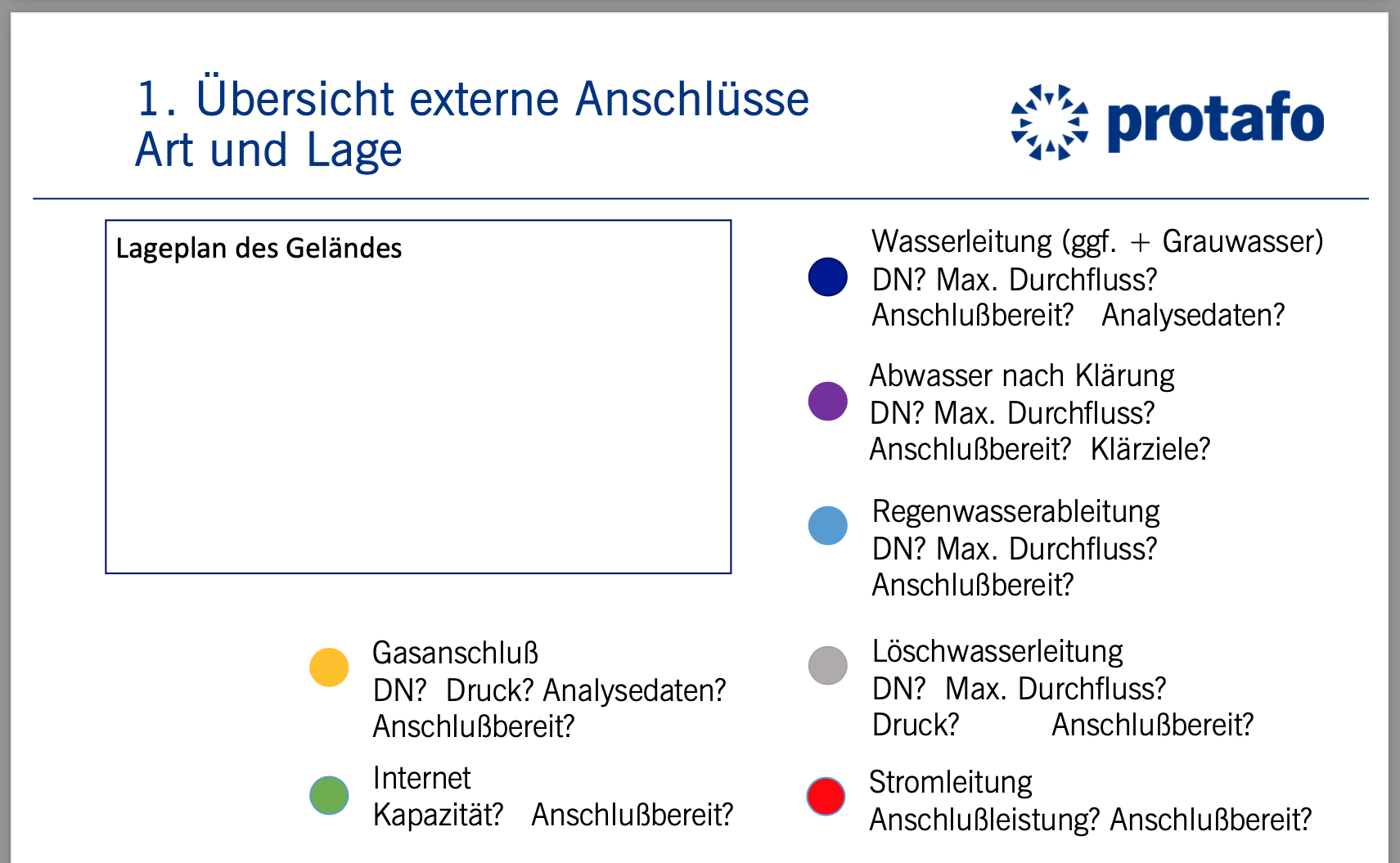

The schematics of the common media systems with connection to external media supply provide a basic framework in which even handwritten additions are sufficient to form a guideline when discussing the provision of media, structural necessities, flanking regulations or special permits.

The following media systems are considered: Electricity, water (incl. various types of supply water, sewage, rainwater, gas, internet).



  • Structured query of the use of external media
  • Basis for the complete determination of subsequent media consumption
  • Basis for negotiation with industrial zones
  • Calculation support for construction and consumption costs

Digital download

After ordering, you will receive a download link to the pdf document, which you can use immediately.

Please note that this slide set to which you are purchasing access is for your personal use only. It is prohibited to resell the slide set in any form and in any digital or physical manner or to publish it in any physical or online publication without my permission.

Copyright holder for the contents is Kathleen Wagner.

Link: pdf file
